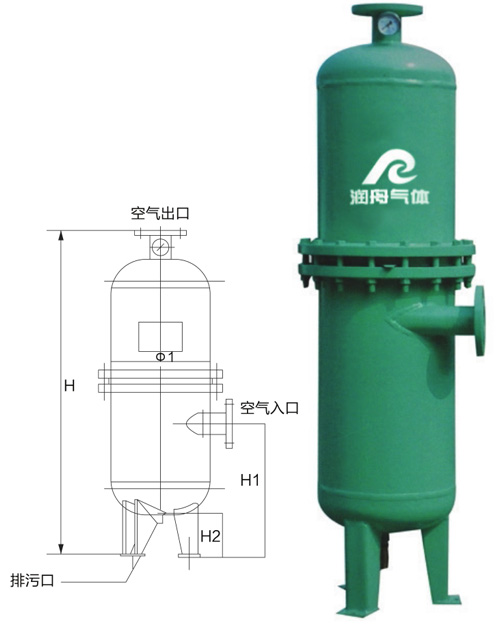

產(chǎn)品簡介 | Principle

集旋風分離、粗過漶、精過漶三級凈化于一體的過濾器，對壓縮空氣中的油水進行直接堵截，通過旋風分離、重力沉降、粗過濾、精濾芯層過濾，能徹底的去除壓縮空氣中的油、水、塵，經(jīng)過該過濾器的壓縮空氣過漶精度可達到0.1um，殘油量小于0.1PPm。

The filters, Collection cyclone, coarse filter, fine filter in one of the three purification filter, and directly compressed to intercept the water through the cyclone separation, gravity settling, coarse filter, fine filter layer of the filter, compressed air can be completely removed oll, water,dust, air filtration through the filter accuracy can reach O1um, residual oil content of less than 0.1 Ppm

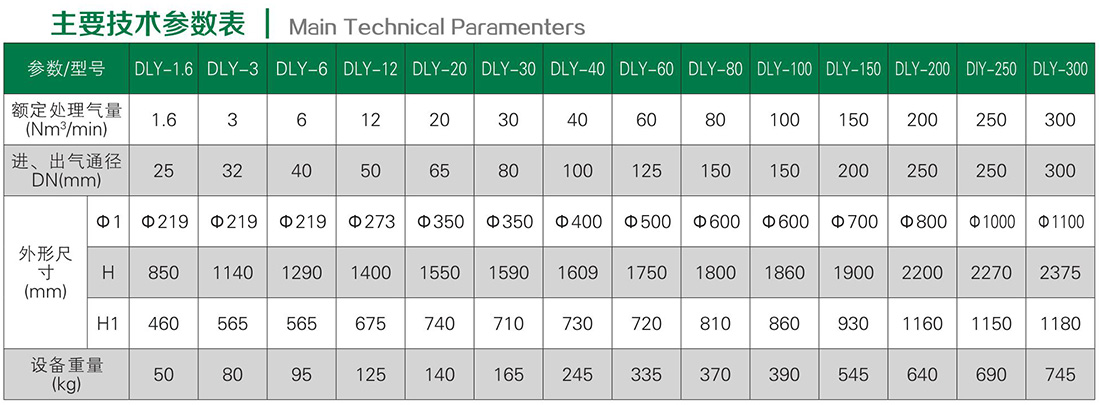

技術指標 | Technique Data

工作壓力:0.6～0.8Mpa(根據(jù)要求可提供0.8～3.0Mpa)

進氣溫度:≤50℃

出氣含油量:＜0.1～0.01ppm

壓力損失:≤0.02Mpa

Working pressure: 0.6 to 0.8 Mpa(it can provide 0. 8 to 3.0 Mpa by requirements.

Intake temperature: ≤50℃

Gassing oil content: <0. 1-0.01 ppm

Pressure loss: <0.02mpa
